Modbus TCP (Daisy Chain)
Modbus TCP (Daisy Chain)

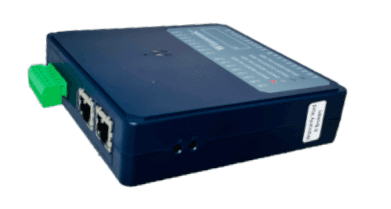

DAU02 series has two switched Ethernet ports, allowing information to be freely passed downstream to another local Ethernet device. Daisy-chaining equipment in this manner will also reduce overall labor and wiring costs.
Features
- Supports industrial protocol: Modbus TCP Server.
- Supports multiple IoT Protocols: MQTT, RESTful API, SNMP
- Easily connect the edge devices to cloud, like Microsoft Azure, AWS, and AIoTera
- User-definable Modbus TCP Slave addressing
- Built-in web browser for friendly configuration
- Two-ports Ethernet switch for daisy-chain topologies.
- Save time and wiring costs for mass deployment.
- Auto-Bypass protection.
- Easy network setup with Auto-Search RIO utility
- Power input 9~36VDC
- Operating Temperature : -35°C to 75°C
- ESD protection 4KV contact for each channel
| Model No. | Specifications | Downloads |
|---|---|---|
| DAU02-MOD-8DI+4RLY | Modbus, Ethernet interface, 8DI + 4 Relay | |
| DAU02-MOD-8DI+8DO | Modbus, Ethernet interface, 8DI + 8DO | |
| DAU02-MOD-16DI | Modbus, Ethernet interface, 16DI | |
| DAU02-MOD-16DO | Modbus, Ethernet interface, 16DO | |
| DAU02-MOD-8AI | Modbus, Ethernet interface, 8AI | |
| DAU02-MOD-8AO | Modbus, Ethernet interface, 8AO |
