Small Form-Factor Pluggable (SFP) Transceivers for Gigabit Ethernet

Product Overview

The Winsonic Small Form-Factor Pluggable (SFP) Gigabit Interface Converter, a standard in the industry, connects your switches and routers to the network. This hot-swappable device can be inserted into a Gigabit Ethernet port or slot. It supports both optical and copper models, which can be used across various Winsonic products. These models can be mixed and matched on a port-by-port basis, supporting 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, and 1000BASE-BX10-D/U.

sfp_transceivers

Features and Benefits:

  • Hot Swappable: Maximizes uptime and simplifies serviceability.
  • Flexible Media and Interface Options: Allows for port-by-port customization, enabling a "pay as you populate" approach.
  • Robust Design: Enhances reliability.
  • Digital Optical Monitoring (DOM) Support: Provides advanced monitoring capabilities.
ModelPhotoDatasheetDescription

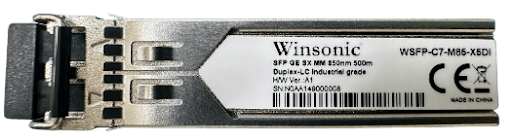

WSFP-C7-M85-X5Di-F
Specpdf
The high performance 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for Gigabit Ethernet 1000BASE-SX and Fiber Channel 1GFC applications up to MMF OM2 550m optical links.

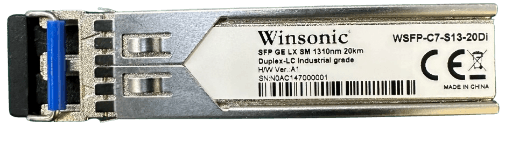

WSFP-C7-S13-20Di-F
Specpdf
The high performance uncooled 1310nm FP transmitter and high sensitivity PIN receiver provide superior performance for Gigabit Ethernet 1000BASE-LX and Fiber Channel 1GFC applications up to SMF 20km optical links.

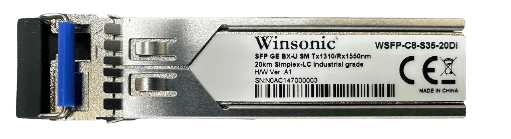

WSFP-C8-S35-20Di-F
Specpdf
The high performance uncooled 1310nm FP transmitter and high sensitivity PIN receiver provide superior performance for Gigabit Ethernet 1000BASE-BX10 and Fiber Channel 1GFC applications up to SMF 20km optical links.

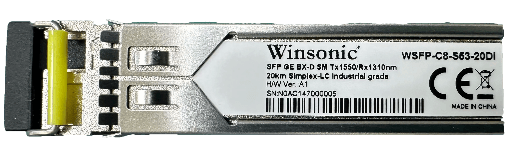

WSFP-C8-S53-20Di-F
Specpdf
The high performance uncooled 1550nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Gigabit Ethernet 1000BASE-BX10 and Fiber Channel 1GFC applications up to SMF 20km optical links.

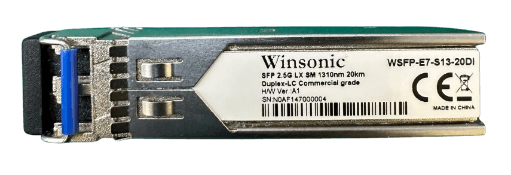

WSFP-E7-S13-20Di-F
Specpdf
The high performance uncooled 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for SONET OC-48 / SDH STM-16 applications up to SMF 20km optical links.

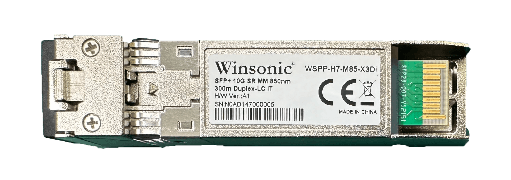

WSPP-H7-M85-X3Di-A
Specpdf
The high performance uncooled 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for 10GBASE-SR Ethernet applications up to MMF OM3 300m optical links.

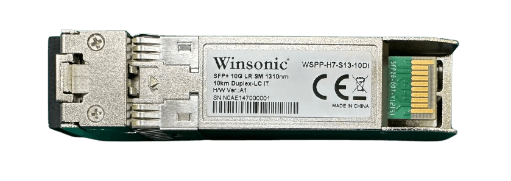

WSPP-H7-S13-10Di-A
Specpdf
The high performance uncooled 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for 10GBASE-LR/LW applications up to SMF 10km optical links.
