What’s Winsonic Military do?

The flush mount series have been designed for military applications that require a compact VGA/SXGA compatible monitor with good view ability. The series has also been designed to comply with military standards for shock, vibration and EMC. It is constructed with aluminum and metal making it good rigidity. With wide viewing angles and deep dimming capabilities, this series of monitors are ideal for the most demanding military applications.

Features include:
  • Rugged design for vehicle mounting
  • Option Non-glare glass protection screen, AR coated
  • Option High brightness and wide viewing angles
  • Deep dimming capability
  • VESA standard rear fixing
  • Suitable for control room, marine and vehicle environments

Military LCD Display and Panel PC

Rugged military LCD monitors and computers that perform to the high standards to meet MIL-STD-810G and MIL-STD-461F. Military standards—including MIL-DTL-901E (formerly MIL-STD-901D), MIL-STD-810F and MIL-STD-461E— Winsonic rugged LCD displays and computer monitors endure harsh environments.

Military display standard multi-function operator console, a IP65 or NEMA 4X military rugged touch screen panel computer. Military display are fully-Integrated 15/17/19/21.3/23.1 inch, resistive touch screen interface, Intel® Atom™ Processor Baytrail & Core i3/i5/i7, 100V-240V, MIL26482 & MILD38999 MIL Spec connector.

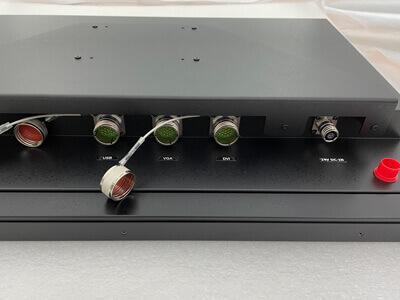

MIL 38999 connector

MIL-STD-38999 Connectors that attach cables to each other or to electronics boxes.

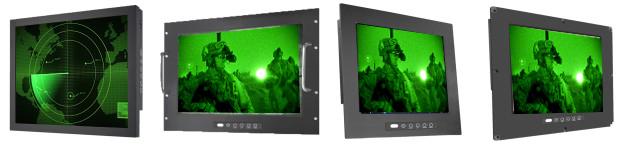

Night Vision Imaging Systems (NVIS).

NVIS technology has become a standard requirement for the mostly of military applications. As the battlefield become increasingly the need for LCD displays to support NVIS. It also supports wide temperature -20°C to +70°C and wide voltage input 9V~36V DC isolated power with MIL-461 EMI, to make it a solution for military rugged computing applications.

Winsonic NVIS function features include:
  • Provide a range of brightness from full to almost zero nits
  • The ability to operate independently in normal LCD mode or NVIS mode as needed
  • Compliance Type I, Class B
NVIS

MIL-STD-810F vibration test

Military display vibration test 1

X axis

Military display vibration test 2

Y axis

Military display vibration test 3

Z axis

Military display vibration test 4

After Test

Military fanelss panel PC

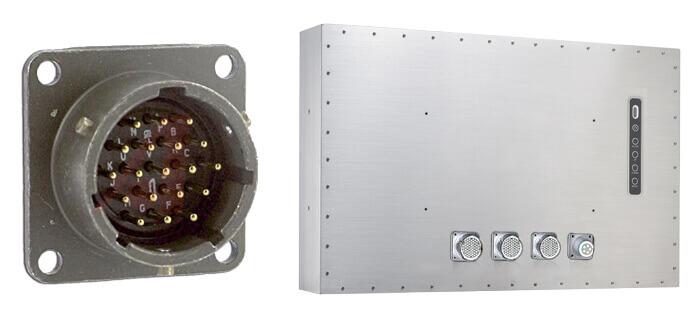

MIL-26482

• Aluminum housing
• Inline and bulkhead mounting
• EMI filter protection styles
• Quick disconnect
• Temperature range of -55-to-125

MIL-STD-810G

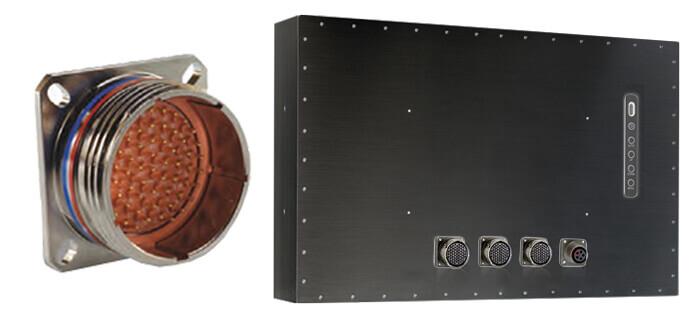

MIL-D38999 Aerospace

• Corrosion resistant olive drab cadmium
• plate aluminum (composite)
• EMI Shielding –50 dB@10
• 500 hour salt spray
• Temperature range of -65-to-200

MIL-STD-461F

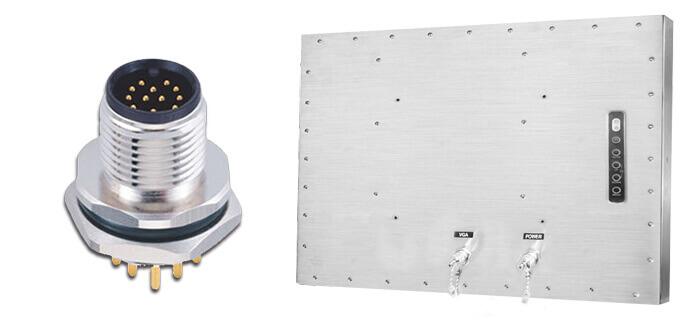

M12 Metal Connectors

• Environmentally Sealed
• multi-pin circular connector
• IP66 Metal Housing
• Pin: Copper Alloy, Gold Plated
• Temperature range of -20 to 80
